VALOI easy35

Store/Photo Lab/Film processing

Product Details

UPC-Strichcode: 6429810609359

Marke: VALOI

EAN-Code: 6429810609359

Weight: 750 g

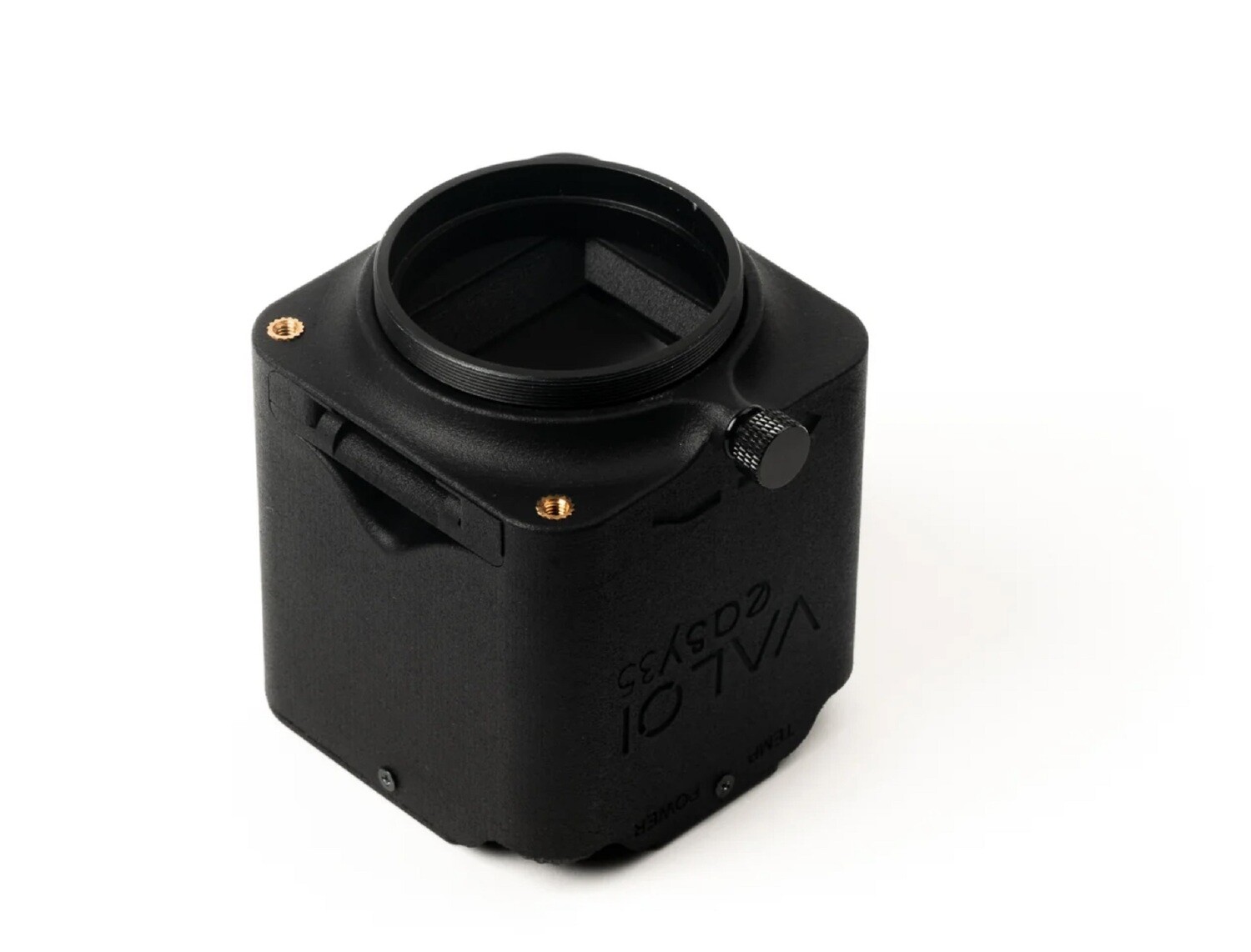

VALOI easy35

Get great film scans at home using your digital camera and macro lens

The VALOI easy35 screws onto a macro lens allowing you to scan 35mm film with a digital camera. With the easy35, set-up, alignment or errors are minimal as the design ensures light shading, perfect alignment and a firm attachment to the camera. The kit comes with 280mm film distance tubes, allowing the use of most true macro lenses on the market.

The easy35 35mm sprocket mount is compatible with the easy35 system. It replaces the 35mm support supplied with the system's main unit and allows the user to scan the frame and rebate area outside the frame, while keeping the film flat using a double S-curve track design.

-Plug-and-Play Scanning at home
-Scan up to 10x faster than with a flatbed scanner
-Super compact: Fits in a small camera bag
-Professional-grade film holders for speed and quality
-Built-in professional-grade light source for convenience and consistent quality
-Replaceable light source for a long life span
-Great materials for a long-lasting product
-Modular holders allowing formats smaller than 35mm
-No copy stand or tripod required, saving you space and money
-Compatible out of the box with most macro-lenses, including those with filter threads of 39mm, 46mm, 49mm, 52mm, 55mm, 58mm, 62mm, 67mm

Includes:

-VALOI easy35 body with built in light
-VALOI easy35 Standard 35mm Holder
-VALOI easy35 Distance Tubes: 1x 10mm, 1x 20mm, 5x 40mm (230mm total)
-VALOI filter thread adapters: 39mm, 46mm, 49mm, 52mm, 55mm, 58mm, 67mm (compatible out of the box with lenses with these filter thread adapters - also compatible with 62mm filter threads as this is the native thread size of the easy35)

Does not include digital camera or macro lens, both required to make final scans.

Compatibility
Suitable for scanning 35mm film out of the box.
The standard holder can be replaced with a variant showing the sprockets of the film.
In the future, it will be compatible with smaller film sizes like APS, 110 and 126 film.

Most interchangeable-lens digital cameras make excellent scanning cameras.
You will need a macro lens capable of focusing to 1:1 magnification to scan 35mm film. Most of those lenses available will be compatible.

Materials

The easy35 is a premium product.
It is constructed from quality materials because scanning demands precision, and inferior materials do not yield a precision device.

The housing is crafted from Nylon 12, an exceptionally robust plastic that is both rigid and incredibly durable.
This material is also ideal for additive manufacturing. It is produced using an additive manufacturing technique known as MJF, enabling the creation of complex shapes.
This results in a device that's stronger, lighter, and more compact.

The tubes, including the part that facilitates tube rotation for rotational adjustment, are made from aluminium and are anodised with a super-matte finish.
While this makes the tube somewhat heavy, it ensures that the tube is extremely rigid. The precise threading not only enhances the user experience but also guarantees that the device aligns perfectly with the sensor.
Additionally, the super-matte finish ensures no reflections bounce back onto the film.

Inside, there's a secondary diffuser crafted from a Plexiglas diffuser acrylic specifically designed for LED diffusion.
This ensures no colour shift and promises consistency, with a guarantee against yellowing for 30 years.

Unlike cheaper solutions, the easy35 has a light system based around a powerful and high-quality light source.

-Powerful light output, with shutter speeds typically between 1/40s-1/200s
-CRI 95 rated for great colour reproduction
-Bi-colour LED adjustable to different colour temperatures
-Plexiglas © secondary diffuser specifically designed for LED diffusion guaranteed for 30 years against yellowing
-2-3 hour battery life
-USB-C charging
-Chargeable while on for long scanning sessions
-Replaceable light source unit for a long life time
-Internal reflector for an even light in a small footprint

The easy35 has replaceable film holders. Currently, only the standard 35mm holder and the 35mm Sprocket holder are available.
By the end of 2023 VALOI will have the following available: 50x50mm mounted slide holder, APS, 110, 126.

Accessories

Did you know that there are accessories for the easy35? The easy35 has the ability to mount the easy35 Duster on it and has interchangeable holders.

To use this product, you need an interchangeable-lens digital camera and a macro lens capable of focusing to a 1:1 reproduction ratio.

The VALOI easy35 is a film digitising solution for the home that simplifies the process of camera scanning, delivering excellent results with minimal setup. Many of common scanning issues, and speed and quality are built into the design. Save money and get high-quality results.

Scanning with the easy35 is clutter-free and easy with its built-in light source that ensures accurate colours and a bright light for sharp scans.

The VALOI easy35 shades the film from external light, making it possible to scan in broad daylight without reflections causing spots or nasty colour casts.

It has professional-grade film holders that ensure high-quality scans, and it is built to last for years or decades of scanning with durable and stable aluminium tubes. While it is focused on 35mm film, it does have a modular film holder system that allows for different holders like a sprocket holder and a slide scanning holder.

Most macro lenses work with the easy35.

There are three constraints with compatibility of lenses on the easy35:

Minimum focusing distance/reproduction ratio
Maximum distance tube length
Filter thread size

Reproduction Ratio

Most non-macro lenses can only focus close enough to, for example, fill the frame with the head of a person. Some a bit closer.

To scan with a camera, you will need a lens that can focus close enough to fill the frame you want to scan. Scanning 35mm using a full-frame sensor, this means a 1:1 (one-to-one) reproduction ratio.

To find out, either Google your lens and include "magnification ratio". If you don't find good results, find the frame you want to scan and focus on it. Is it filling the frame of your camera (you can only see the negative itself)? If yes, you can scan with it. If no, you might have to get a different lens or in some cases use extension tubes (only recommended on lenses that focus to 1:2 and are made for use with extension tubes).

Maximum distance tube length

The distance between the film and the front of your lens when focused on the film you want to scan must be smaller than 230mm.

Due to this, we recommend you stick to focal lengths that are between the below ranges:

Full-frame: 55-105mm
APS-C: 40-70mm
M4/3: 35-60mm

If you are unsure of what this means, you can use the technique in the video below, or follow the steps below:

Draw a rectangle that is 25x36mm (1x1.5") on a piece of paper.
Put on your lens and bring the rectangle in focus while moving incrementally closer
Once you can only see the rectangle through the camera, measure the distance from the front of the lens to the paper
This distance must be smaller than 230mm

Filter Thread Size

The easy35 attaches to the front of your lens with the filter thread. The native filter thread of the easy35 is 62mm, but the kit comes with a set of adapters to different filter threads:

39mm
46mm
49mm
52mm
55mm
58mm
67mm

These sizes cover most lens-types, but not all, such as the Leica-specific E55 thread. However, you can easily find step-up rings that are compatible with this. Stacking these to get to 62mm is also fine.

You cannot use it with most fixed-lens cameras as they don't focus close enough to fill the sensor. This includes the Leica Q-series cameras.

Recommended lenses

NOTE: These are not an exhaustive list of all compatible lenses. Please treat this as a guide to what lenses we recommend in case you buy a new one.

Read above for compatible lenses

Camera System	Top Choice	Budget
Leica Q system	Not recommended	-
Leica M	Laowa 85mm f/5.6	Adapted Nikon 60mm f/2.8 AF
Fujifilm GFX	Fujinon 120mm f/4 Macro	Adapted enlarger lens, or Mamiya 645 120mm f/4 Macro
L-mount (Panasonic, Leica full-frame)	Sigma 70mm f/2.8 Macro	Nikon 60mm f/2.8 (adapted)
Nikon Z (full-frame)	Nikon Z 105mm f/2.8	Nikon 60mm f/2.8 (adapted)
Canon RF (full-frame)	Canon RF 100mm F2.8L Macro	Nikon 60mm f/2.8 (adapted)
Canon EF-S (APS-C)	Canon 60mm f/2.8	Nikon 55mm f/2.8 (adapted) (needs extension tube)
Canon EF (Full-frame)	Canon 100mm f/2.8 (any version)	Nikon 60mm f/2.8 AF (adapted)
Nikon F (DX)	Nikon 60mm f/2.8 AF	Nikon 55mm f/2.8 (needs extension tube)
Nikon F (Full-frame)	Sigma 70mm f/2.8	Nikon 60mm f/2.8 AF
Micro 4/3 (MFT)	7Artisan 60mm f/2.8 v2	TTartisan 40mm f/2.8
Sony E (APS-C)	7Artisan 60mm f/2.8 v2	TTartisan 40mm f/2.8
Sony FE (full-frame)	Sigma 70mm f/2.8 ART	Nikon 60mm f/2.8 AF
Fujifilm X	7Artisan 60mm f/2.8 v2	TTartisan 40mm f/2.8
