Kaiser DigiCopy Vario

Product description:

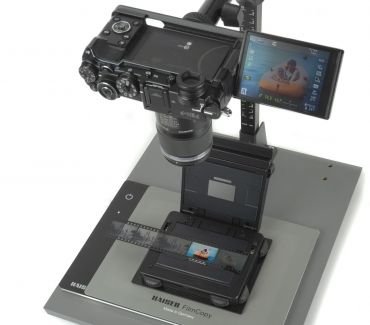

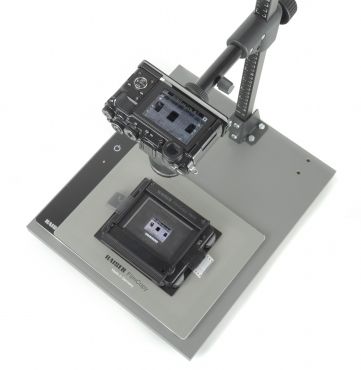

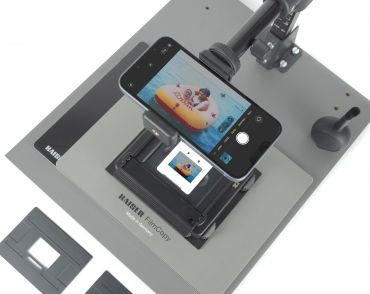

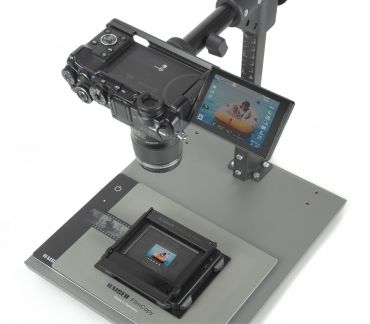

Complete starter set for digitising 35mm slides and negatives using your own smartphone or a lightweight camera with a macro lens (1:1). Can be converted for film formats up to 6 x 9 cm using accessory format masks and glass inserts.

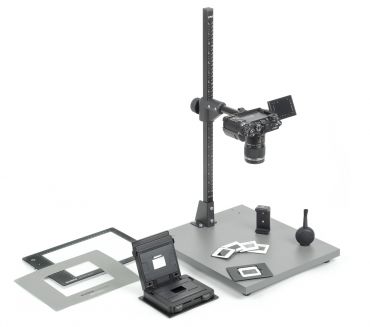

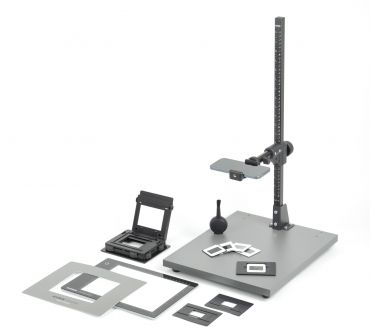

Consisting of the compact reproduction stand reprokid for attaching a lightweight camera or the included smartphone holder, the holder FilmCopy Vario with an insert for framed slides in the external format 5 x 5 cm, interchangeable with format masks 24 x 36 mm and the LED light panel slimlite plano as a transmitted light source, with a support mat for edge coverage. The set also includes an air brush for gently cleaning the slides and negatives.

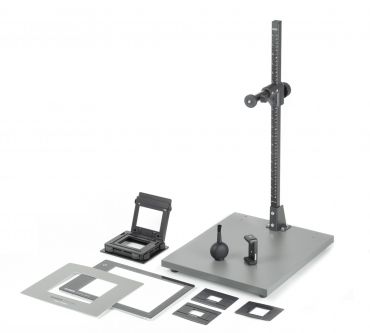

Contents:

- reprostand reprokid (5361)

- FilmCopy Vario Kit (2458):

FilmCopy Vario holder (2457), incl. format insert for 35mm slides

(4489), format masks 24 x 36 mm (4486) and mat

as well as slimlite plano light panel (2453)

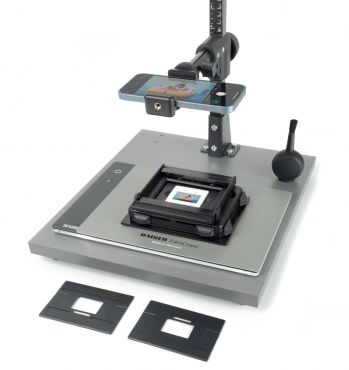

- smartphone holder (6015)

- air brush (6311)

More info:

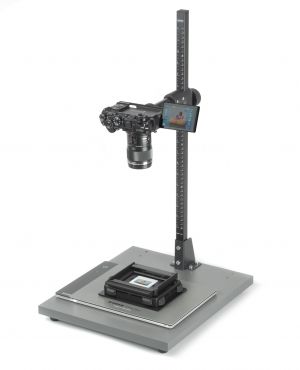

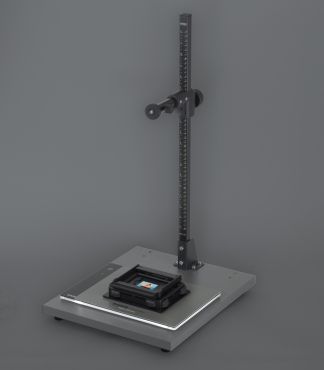

Reprostativ reprokid

Compact tripod for small, light cameras up to 1 kg or smartphones (attached using the smartphone holder).

Non-reflective, matt grey base plate 32 x 38 cm (W x D), column 59 cm, height-adjustable camera arm with 1/4’ connection thread.

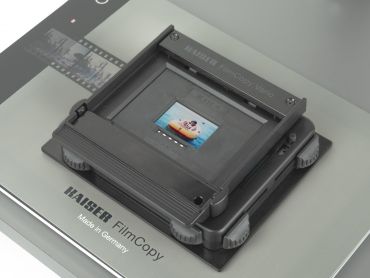

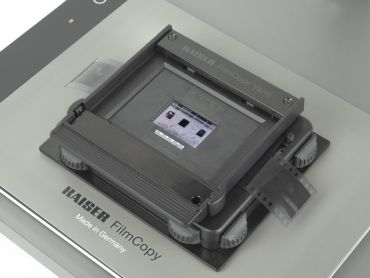

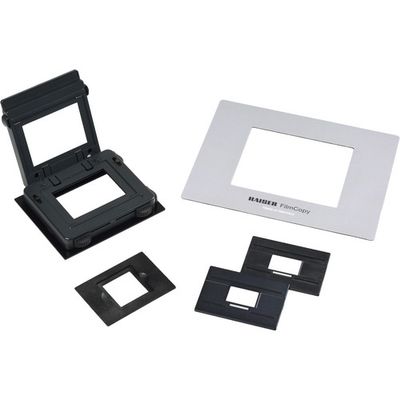

FilmCopy Vario

Solid holding device for precise positioning of slides and negatives of various formats when digitising with a smartphone or a camera with a macro lens (1:1) on a reproduction or camera tripod. For use on light boxes.

Incl. insert for framed 35mm slides in 5 x 5 cm frames and 24 x 36 mm format masks with guide rails for 35mm film strips.

With the appropriate format masks or glass inserts (each optional accessory), it is also suitable for film strips and cut individual slides and negatives in the film formats 4.5 x 6 cm, 6 x 6 cm, 6 x 7 cm, 6 x 9 cm and 35 mm panorama 24 x 66 mm. The inserts can be easily changed.

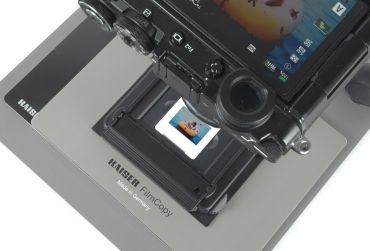

Framed 35mm slides are inserted directly from above into the FilmCopy Vario; to insert film strips, the pressure frame is folded up.

Lower part with adjustable stop pins for different film widths and four infinitely adjustable masking tapes.

Incl. mat 254 x 201 mm to protect against stray light.

Weight FilmCopy Vario (without masks, without mat): approx. 600 g

Note: The FilmCopy dia MF holder is suitable for digitising 4.5 x 6 cm and 6 x 6 cm medium-format slides in 7 x 7 cm frames, art. no. 2459

Tip: There are various software solutions for converting black and white/colour negatives, e.g. from Negative Lab Pro or ColorPerfect.

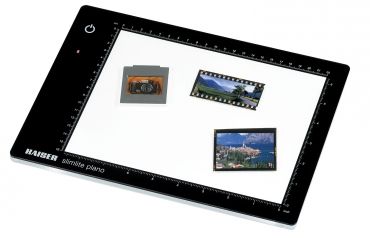

Slimlite plano light panel

Super-flat LED light panel for even and colour-correct illumination when viewing, sorting and digitising slides, negatives or other transparent originals.

Light area 22 x 16 cm, 5000 Kelvin daylight, colour rendering index CRI: 95 for accurate colour reproduction, continuously dimmable, choice of mains operation or battery operation with integrated rechargeable battery. Incl. mains unit/charger.

For further information see 2453.

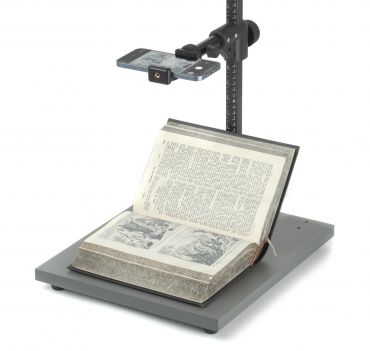

Smartphone holder

For mounting a smartphone on a tripod or on a mount with a 1/4’ connecting thread.

Rubber quick clamp with a clamping width of 55–90 mm.

Dimensions (WxHxD): 36 x 73(-108) x 24 mm.

For more information, see 6015.

Air brush

Small round brush with silicone bellows. With base for standing.

Length: approx. 10 cm, depth: approx. 3.3 cm, bellows diameter: approx. 5 cm

SCOPE OF DELIVERY:

• Repro stand reprokid (5361)
• FilmCopy Vario Kit (2458)
• Fixture FilmCopy Vario (2457), incl. format insert for 35mm slides (4489)
• format masks 24 x 36 mm (4486) and mat
• and light panel slimlite plano (2453)
• Smartphone holder (6015)
• Air brush (6311)

NOTE:

Subject to technical modifications.

This product is designed to illuminate image recordings and is not intended for any other applications.
