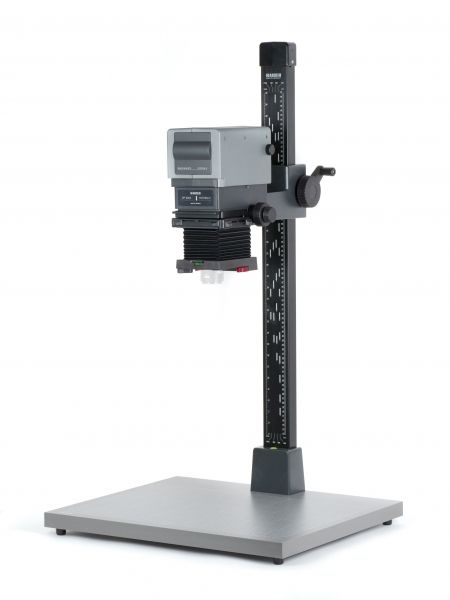

KAISER 4540 B/W enlarger VP 9005 SYSTEM-V 6x9, without lens - made to order

• Black and white enlarger for all formats up to 6 x 9 cm and lenses up to 105 mm focal length. enlarger with book-type stage, equipped with anti-Newton glass/flat glass (4433), 6 x 7 cm format mask, opal lamp (4356), diffuser for filter drawer, two lens retaining rings. Without lens
• base (WxDxH): approx. 600 x 500 x 32 mm
• Distance between optical axis and base: approx. 220 mm
• Column (HxWxD): approx. 1000 x 70 x 35 mm
• Filter compartment: 85 x 85 mm
• Power supply: approx. 2.50 m
• Lamp: 75 W opal lamp, E 27
• Can be converted to a repro stand
• base board (WxDxH): approx. 600 x 500 x 32 mm

Black and white enlarger for all formats up to 6 x 9 cm and lenses up to 105 mm focal length.

Compound negative carrier equipped with AN glass above and flat glass below, additional 6 x 7 cm mask.

Focusing with additional fine adjustment. Height adjustment with counterbalanced roller spring.

Swivelling and height-adjustable filter holder for rectangular filters and framed Multigrade® filters, with diffuser disc for integral metering.

Base board (WxDxH): approx. 600 x 500 x 32 mm

Black and white SYSTEM-V enlargers

Common features:

Illumination head with 75 watt opal lamp, lamp adjustable. Interchangeable double condenser system. Drawer for insertion filters, e.g. Multigrade® filters.

Removable compound negative carrier with exchangeable inserts, adjustable format masks, adjustable film stop and register pins. Objective lens carrier with spirit level and red filter, can be swivelled for distortion correction according to Scheimpflug. Quick-change lens system. Height adjustment with hand crank via plastic-mounted friction drive. Suitable for both wall and floor projection.

Wide, low-vibration guide column made of aluminium profile tube, matt black anodised, with cm and inch scales and markings for magnification scales. Matt grey coated base board with individually height-adjustable feet. Base with built-in spirit level.

SCOPE OF DELIVERY:

Incl. compound negative carrier, lamp, two lens retaining rings and dust cover, without lens.

TECHNICAL DATA:

Lamp: 75 W opal lamp, E 27

Supply cable: approx. 2.50 m

Filter compartment: 85 x 85 mm

column (HxWxD): approx. 1000 x 70 x 35 mm

Distance optical axis - base: approx. 220 mm

Can be converted to a repro stand.
